Terminology

It is a document (HTML and/or paper copy) that is unique for each entitlement.
It is the legal proof of ownership. It is very important to keep it.
It is shipped together with the hardware product delivery as paper copy (if applicable), or sent by email for eDeliveries.
It contains information about entitlement lines / license products, the quantity and the expiration date.

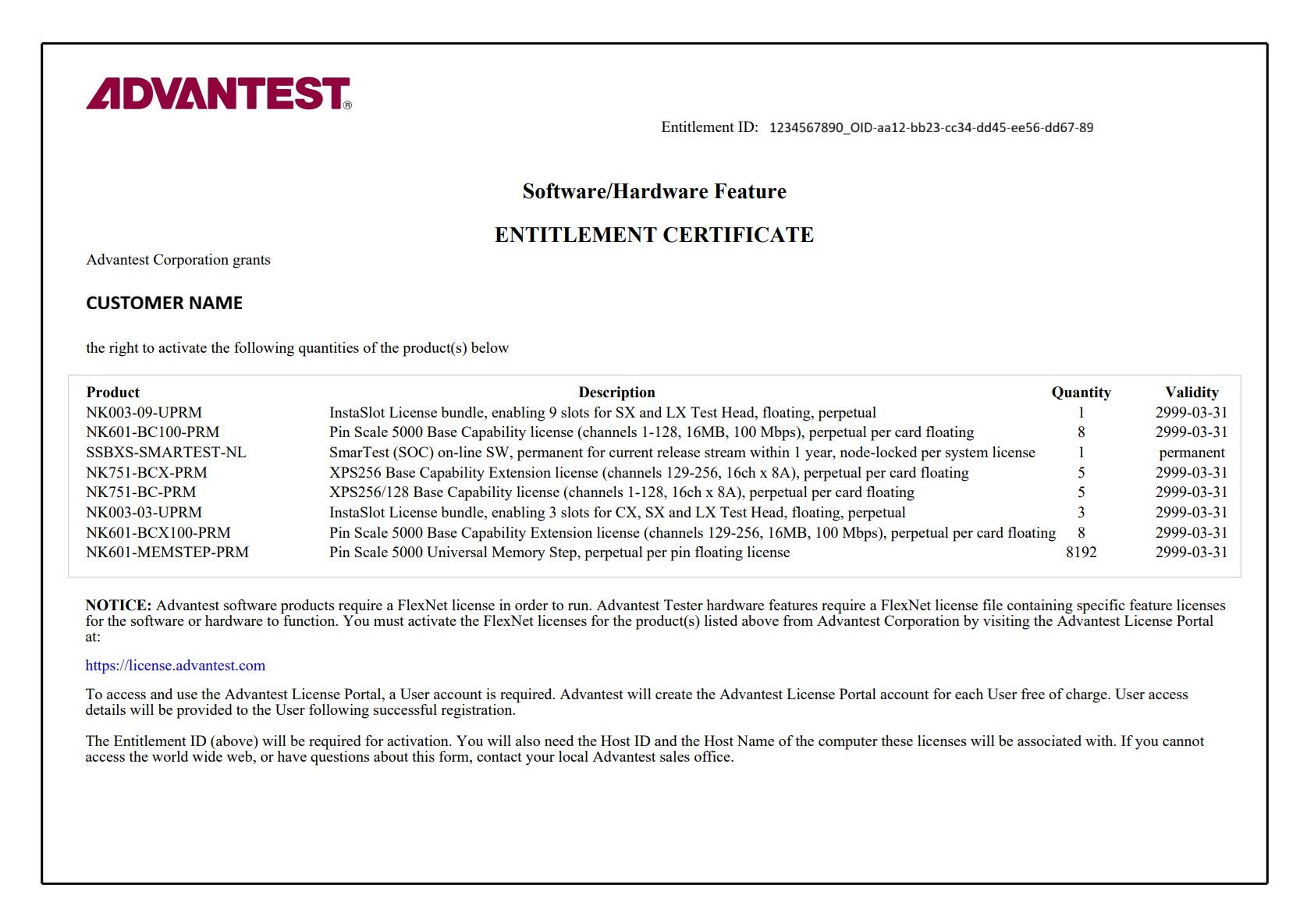

Example for an entitlement certificate:

In the example above

The entitlement ID can be found in the upper right corner. This is an important key, needed for license activation. This key should not be shared to other companies.
The CUSTOMER NAME is printed on the entitlement certificate, which is the owner of the entitlement certificate.
There is a line for each license product visible in the box. Each line contains the Advantest license product name like "NK003-09-UPRM", the product description like "InstaSlot License bundle, enabling 9 slots for SX and LX Test Head, floating, perpetual", the number of license product available like 1 in the column Quantity and the validity, which means when the license will expire. The date 2999-03-31 stands for 31st March 2999 and is called "permanent" as this date is far in the future.
The NOTICE shows that access to the license portal is needed in order to activate the licenses on the entitlement certificate to a license server, so that the license can enable the appropriate software or hardware feature(s).

It is the date after which the respective license will no longer be valid.
If there is not an expiration date but the term “permanent”, then the license does not expire.
Examples for expiration dates:
- 31-Mar-2026
- 31-Mar-2999
  If the license has this expiration date, it is called “permanent” as the year 2999 is far in the future.
At Midnight the license server checks the expiration dates and if a license expired, it is no longer available.

A license allows the use of a specific hardware or software capability.

It describes a technical functionality enabled by a license (bin) file
It consists of a name (= license string / string name) and a version number, e.g. Protocol_Aware_SOC, Version 1.0
Every feature of a license product has a specific count, i.e. quantity that can be used simultaneously

It consists of a product name (= product number), a description and a set of features and their quantities
It describes an item that consists of a set of features.

Example:
License Product Name: N7050AOF
License Product Description: Pin Scale SmarTest off-line, permanent per session floating license
Feature: SmarTestOffline_SOC Quantity: 1
In the example above it is only one feature with quantity 1. There could be a set of features with different quantities under the same license product.

The license server setup on a VM is supported. Support details:

For a workstation based license server setup (“local” license server):
On an Advantest tester workstation with supported hypervisor/VM setup, the license server must run on the hypervisor for Z640 and Z4G4 workstation and on the VM for Z4G5 workstation.
For a central license server setup (central license server, three-redundancy-license-server for FNP, failover system for FNE):
The customer server infrastructure can be based on any operating system providing the VM setup for the license server.
The used platform providing the VM is not supported by Advantest. The customer needs to take care.
The VM Operating System must be an Advantest supported Operating System for the license server software.
Advantest supports the license server software on this VM.

Cloning of licenses is strictly forbidden according to the Advantest terms of conditions.
